SK6,SK10,SK16,SK20,SK25
DRJJ
8466100

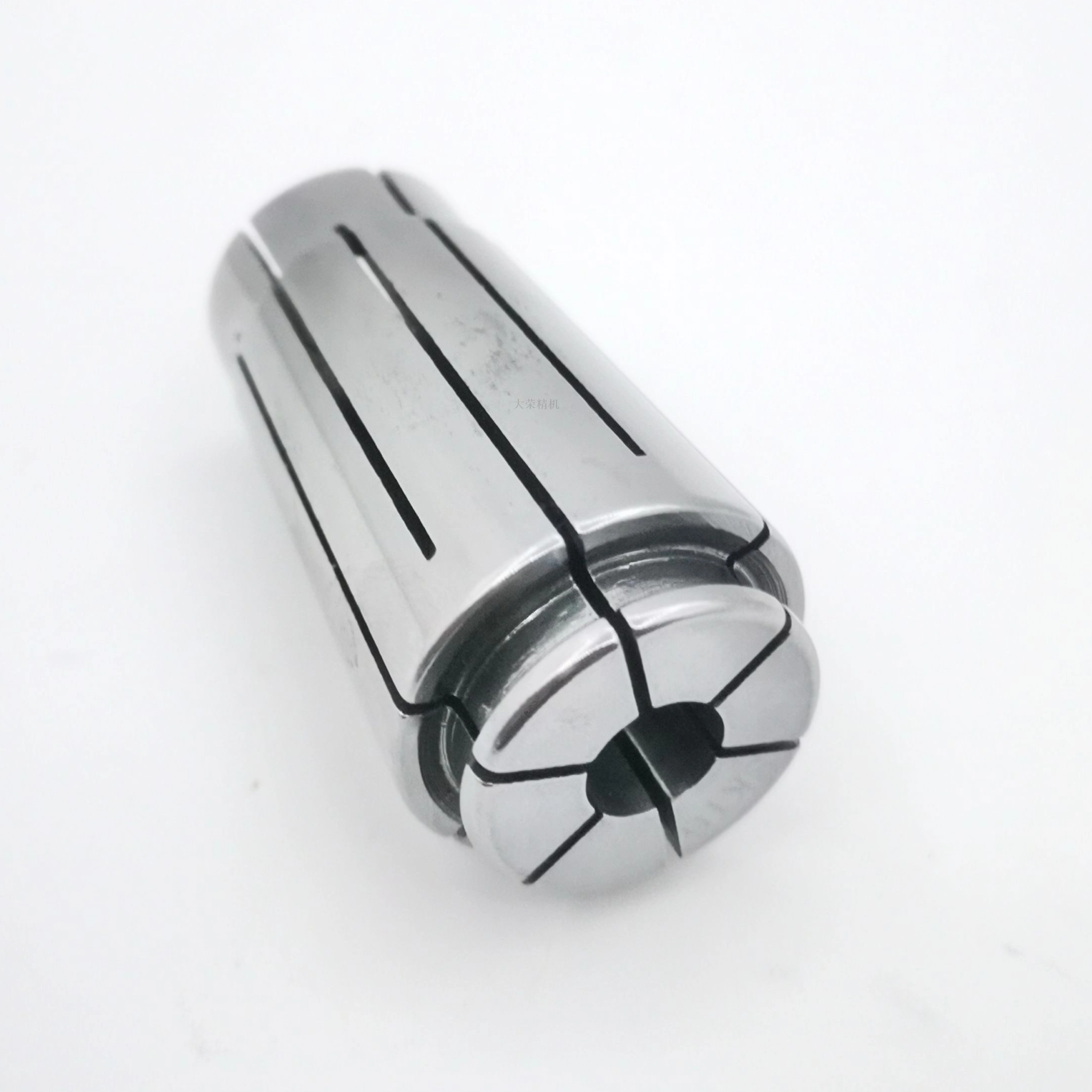

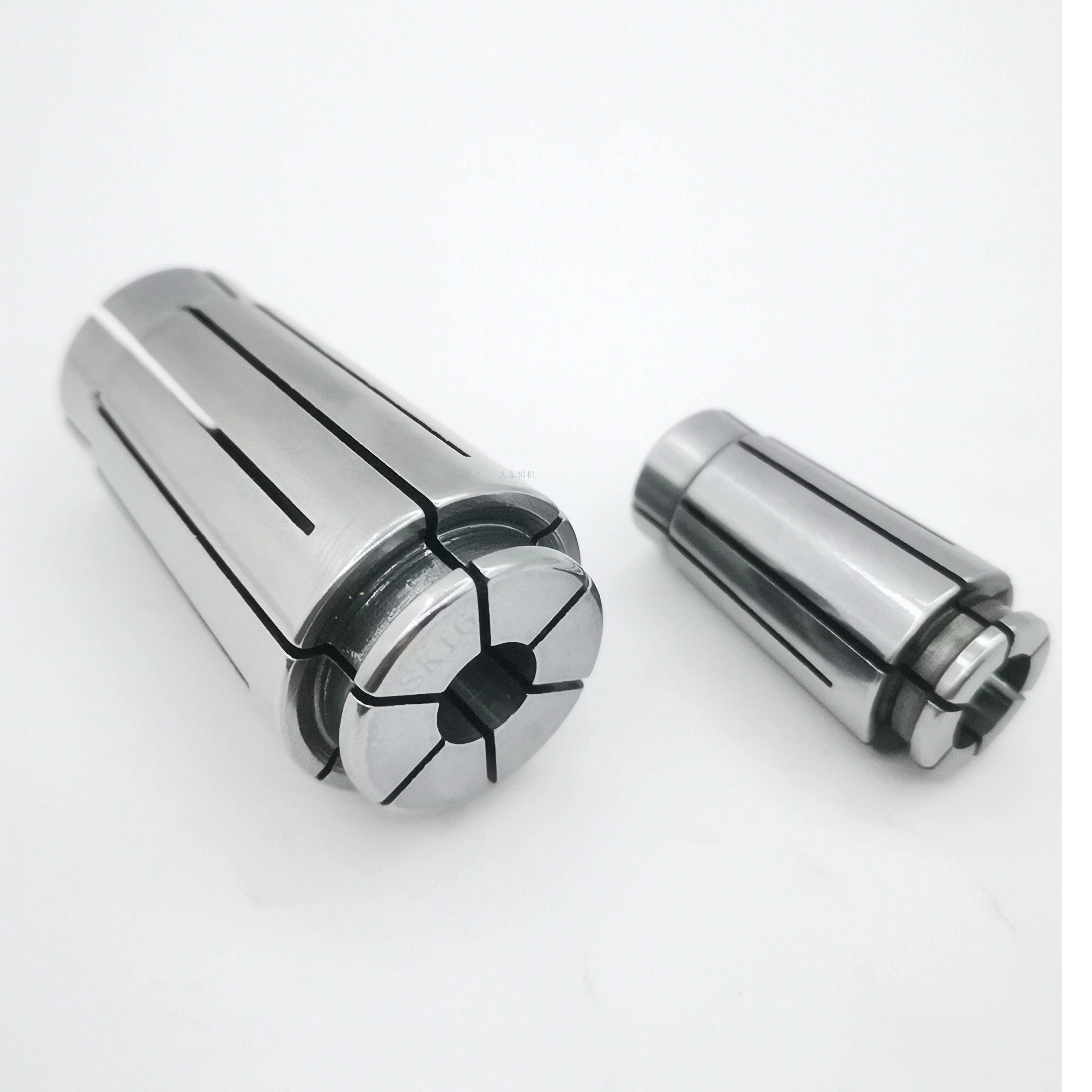

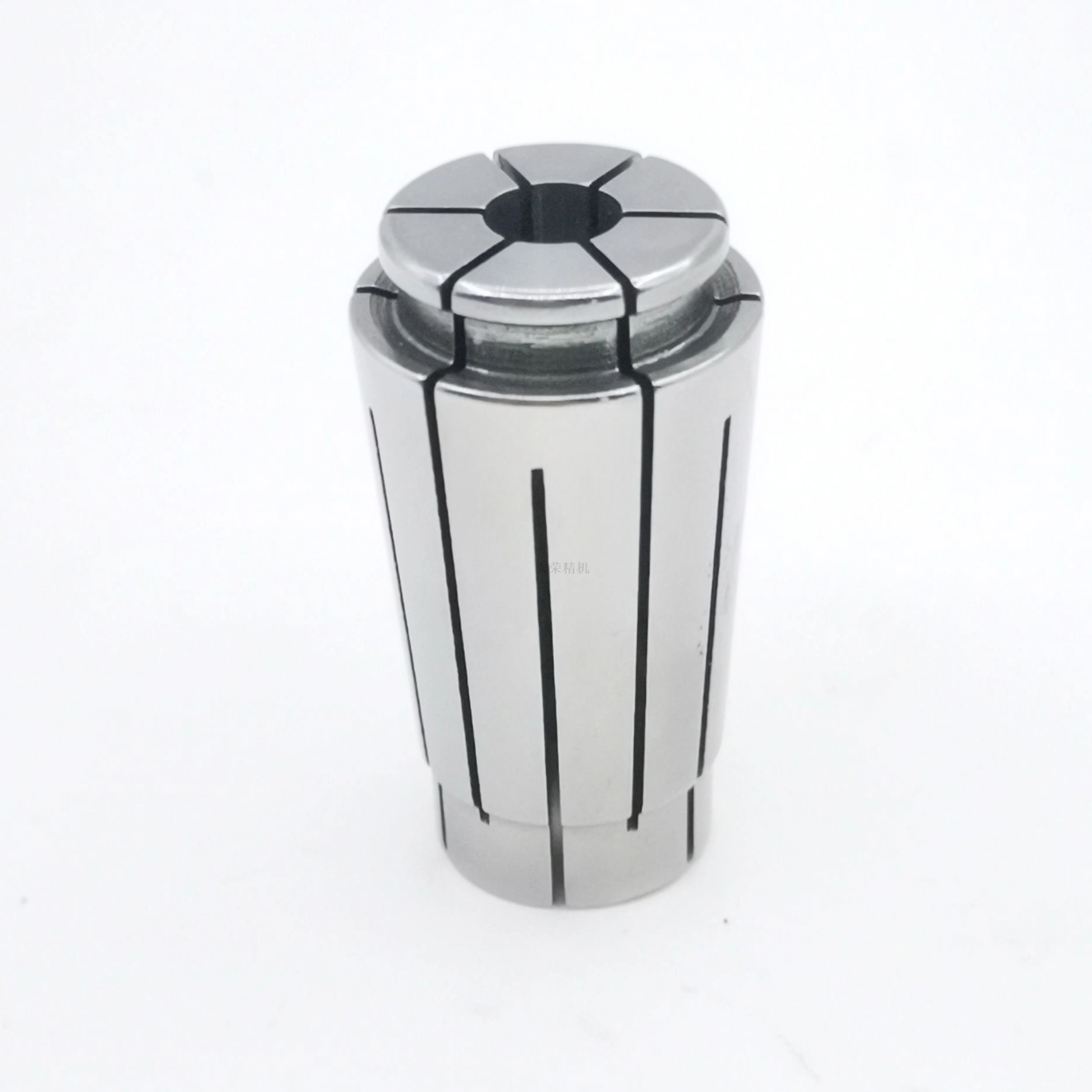

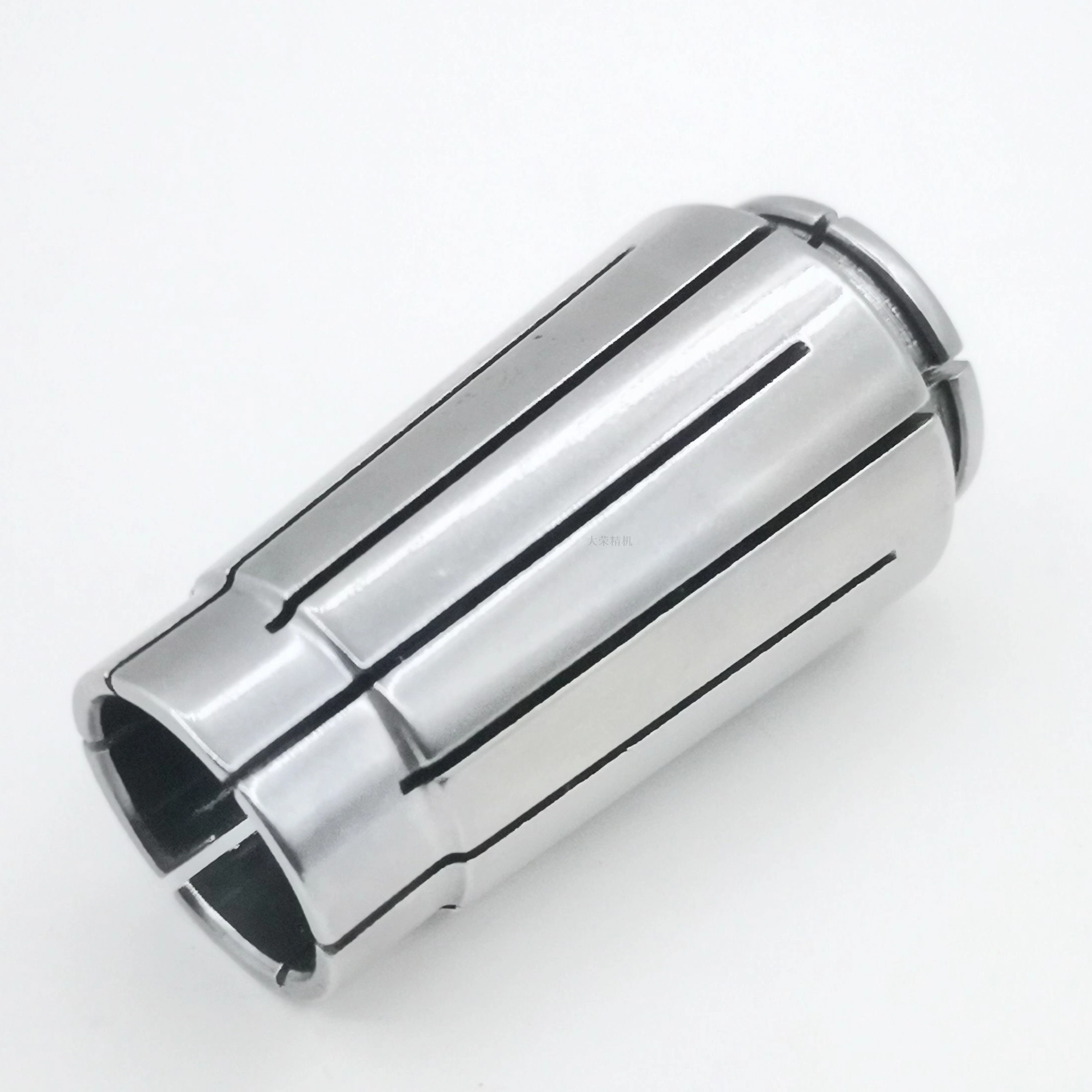

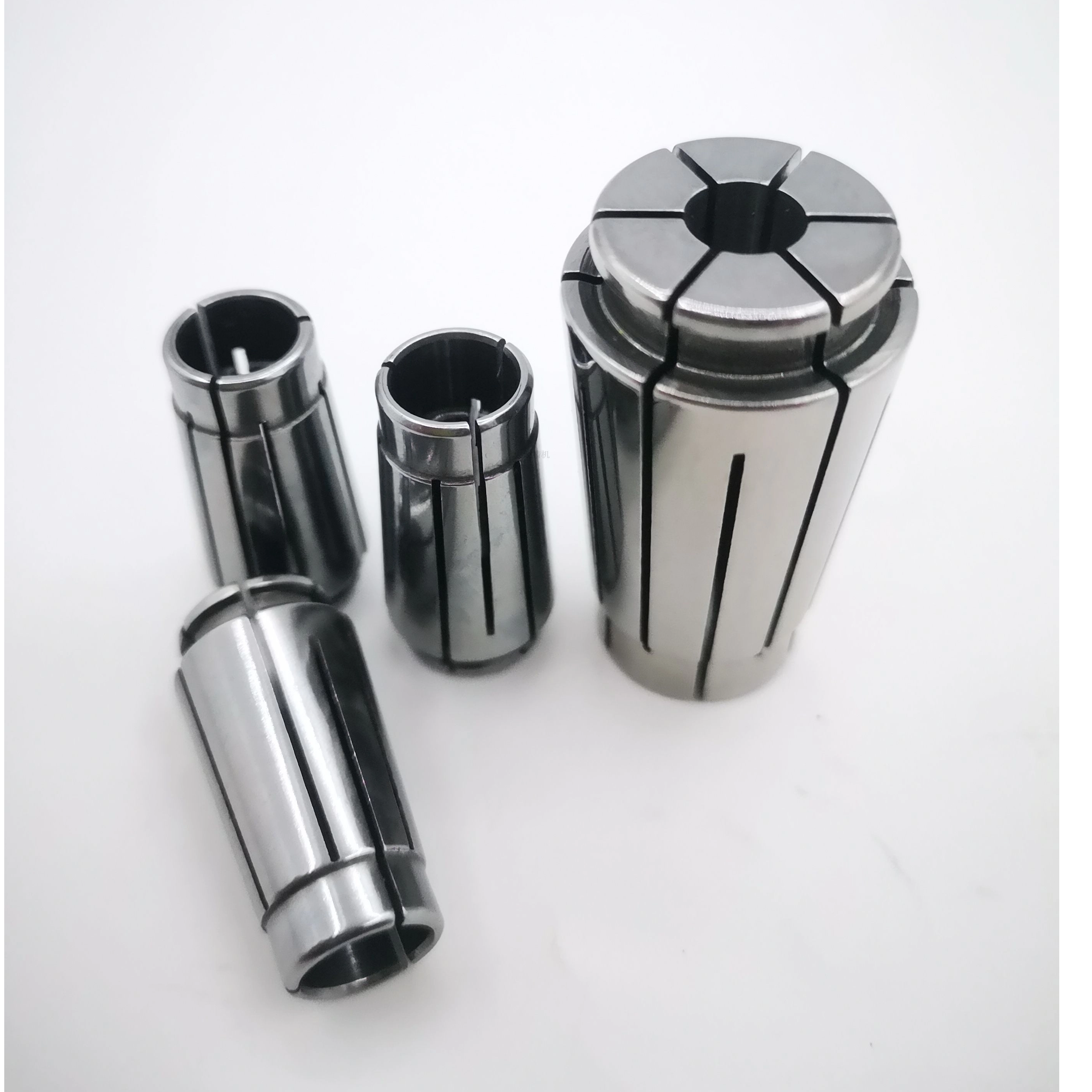

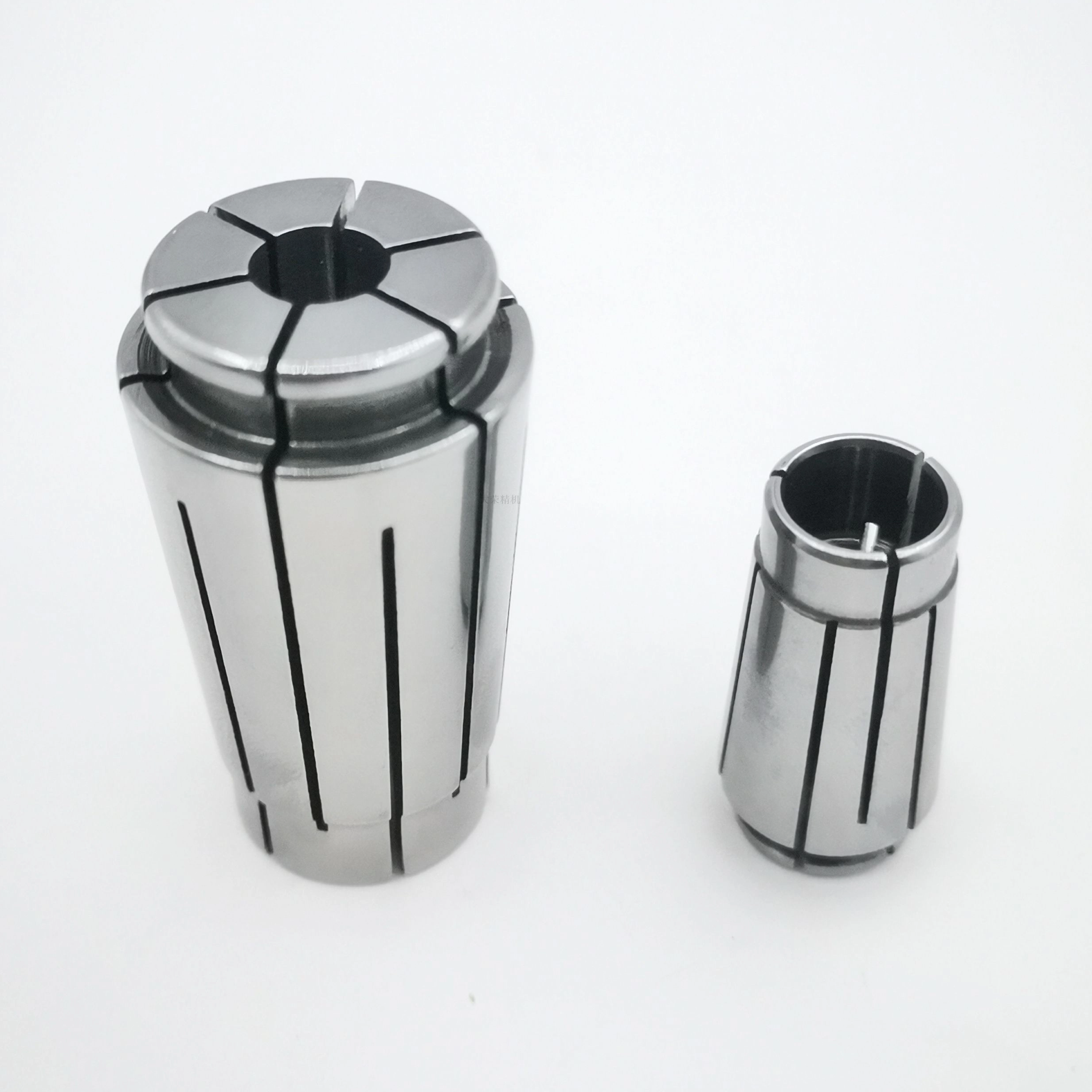

High Precision SK Collets for High Speed Machine
The SK collet is widely used in high-speed milling, drilling and reaming. It has an 8°cone angle, the smaller the cone angle, the higher the concentricity of collet. When clamping, the SK collet will produce strong force, making it easier to be put into tool carrier, which will increase the accuracy of manufacturing to twice than that of ER collet.
| Model | D | KGS |
| SK6 | 2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm | 0.1 |
SK10 | 2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm | 0.1 |
| SK16 | 3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,10.5mm,11mm,11.5mm,12mm,12.5mm,13mm, 13.5mm,14mm, 14.5mm,15mm,15.5mm,16mm | 0.3 |
| SK20 | 4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,10.5mm,11mm,11.5mm,12mm,12.5mm,13mm, 13.5mm,14mm,14.5mm,15mm,15.5mm,16mm,16.5mm, 17mm,17.5mm,18mm,18.5mm,19mm,19.5mm, 20mm | 0.4 |
| SK25 | 6mm,6.5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,10.5mm,11mm,11.5mm,12mm,12.5mm,13mm, 13.5mm,14mm, 14.5mm,15mm,15.5mm,16mm,16.5mm,17mm,17.5mm,18mm,18.5mm,19mm,19.5mm, 20mm, 20.5mm, 21mm, 21.5mm, 22mm, 22.5mm, 23mm, 23.5mm, 24mm, 24.5mm, 25mm | 0.5 |
